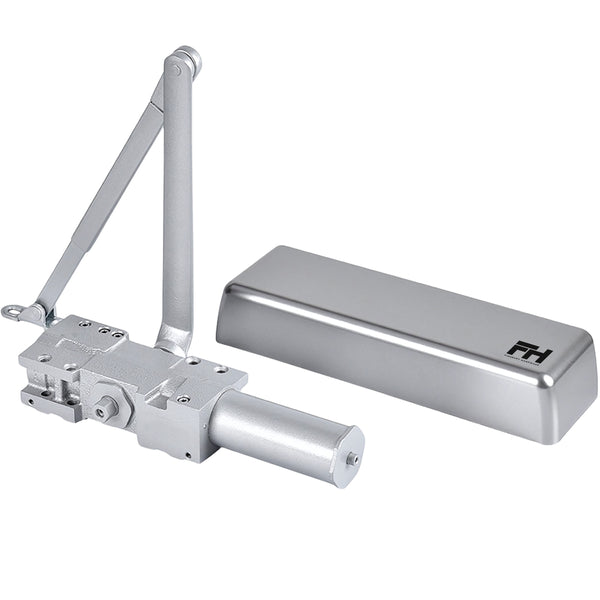

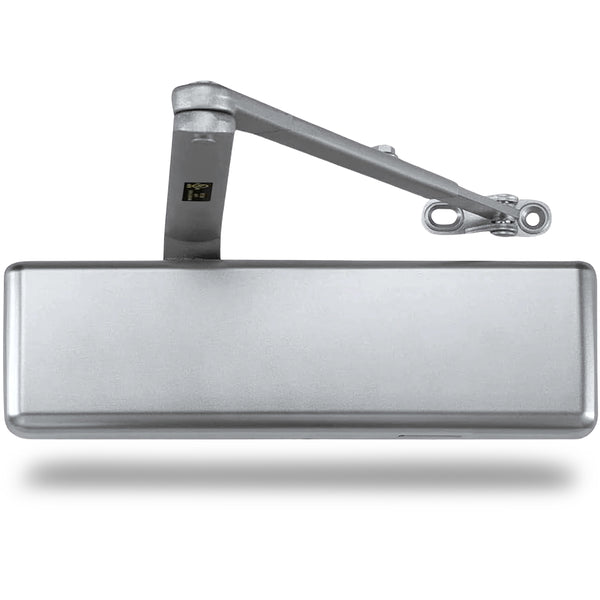

Extra-Heavy-Duty Commercial Door Closer – Grade 1 Performance
Built for Extreme High-Traffic Use
Constructed with a powder-coated cast iron body, wrought steel arm, and heat-treated piston, this commercial-grade door closer is engineered for exceptional durability, corrosion resistance, and long service life. Rated for environments with up to 5,000 door cycles per day, making it ideal for department stores, retail entrances, office buildings, schools, and airport security doors.Three Flexible Mounting Options
This non-handed hydraulic door closer works on both left- and right-handed doors and supports three installation methods: regular arm (pull side), top jamb, or parallel arm (push side). Includes all mounting hardware, drill template, and clear installation instructions for straightforward setup on most door and frame types.Five Independent Adjustment Valves
Precision hydraulic controls allow full customization of door operation:-
Closing speed
-
Latching speed
-
Backcheck
-
Spring power
-
Delayed closing timer
Delivers smooth, quiet, and controlled closing tailored to your specific application.
Certified for Safety and Long-Term Reliability
-
UL 3-Hour Fire Rated
-
ADA Compliant
-
ANSI/BHMA A156.4 Certified (tested beyond 2 million cycles)
The FH-9500 door closer is trusted by contractors, property managers, and builders for code-compliant, long-term performance.
Technical Specifications
-
Door weight capacity: up to 330 lbs (150 kg)
-
Door width capacity: up to 60 in (1500 mm)
-
Closer weight: 12.6 lbs (5.7 kg)
-
Dimensions: 12-1/4" W × 3-1/2" H × 2-1/4" D (311 × 89 × 57 mm)
-
Mounting hole pattern: 5" W × 2-1/4" H (center-to-center)
-
Adjustable spring force: Setting #1 (2 lbs) to Setting #6 (14 lbs)
-
